Parametric Search

HV MOSFETs

Filter, sort and export; for parts not yet listed, send an inquiry to confirm availability

HV MOSFETs cover 600V and above, typically using super-junction structures to keep on-resistance low even at high voltage, mainly serving AC-DC power supplies, PFC stages and industrial inverter switching.

Vds derating should account for both line-voltage variation and switching spikes, typically with generous margin
Rdson together with Qg/Qrr (gate charge / reverse-recovery charge) sets switching loss — the latter matters most in high-frequency topologies
Avalanche rating (UIS/EAS) affects reliability when switching off inductive loads
Package thermal resistance and layout directly drive thermal design in high-voltage, high-power use

Learn more: HV MOSFETs Selection Guide →

SMJ30R019CFTL

SineSemi

Automotive (Y/N): N
Package: TOLL
Configuration: N
Tj (°C): 150
VDS_Max (V): 300
ID_Max (A): 72

SMJ30R019CFY

SineSemi

Automotive (Y/N): N
Package: TO247-3L
Configuration: N
Tj (°C): 150
VDS_Max (V): 300
ID_Max (A): 72

SMJ60R017CFY

SineSemi

Automotive (Y/N): N
Package: TO247-3L
Configuration: N
Tj (°C): 150
VDS_Max (V): 600
ID_Max (A): 125

SMJ60R022CFY

SineSemi

Automotive (Y/N): -
Package: -
Configuration: -
Tj (°C): 150
VDS_Max (V): 600
ID_Max (A): 105

SMJ60R024BFY

SineSemi

Automotive (Y/N): N
Package: TO247-3L
Configuration: N
Tj (°C): 150
VDS_Max (V): 600
ID_Max (A): 80

SMJ60R030AFY

SineSemi

Automotive (Y/N): -
Package: -
Configuration: -
Tj (°C): 150
VDS_Max (V): 600
ID_Max (A): 100

SMJ60R035BFTL

SineSemi

Automotive (Y/N): N
Package: TOLL
Configuration: N
Tj (°C): 150
VDS_Max (V): 600
ID_Max (A): 66

SMJ60R035BFY

SineSemi

Automotive (Y/N): N
Package: TO247-3L
Configuration: N
Tj (°C): 150
VDS_Max (V): 600
ID_Max (A): 66

SMJ60R038CFY

SineSemi

Automotive (Y/N): N
Package: TO247-3L
Configuration: N
Tj (°C): 150
VDS_Max (V): 600
ID_Max (A): 70

SMJ60R040CFY

SineSemi

Automotive (Y/N): -
Package: -
Configuration: -
Tj (°C): 150
VDS_Max (V): 600
ID_Max (A): 83

SMJ60R065AFS

SineSemi

Automotive (Y/N): -
Package: -
Configuration: -
Tj (°C): 150
VDS_Max (V): 600
ID_Max (A): 55

SMJ60R065AFTL

SineSemi

Automotive (Y/N): -
Package: -
Configuration: -
Tj (°C): 150
VDS_Max (V): 600
ID_Max (A): 55

SMJ60R076AFT

SineSemi

Automotive (Y/N): -
Package: -
Configuration: -
Tj (°C): 150
VDS_Max (V): 600
ID_Max (A): 52

SMJ60R099BFF

SineSemi

Automotive (Y/N): N
Package: TO220F-3L
Configuration: N
Tj (°C): 150
VDS_Max (V): 600
ID_Max (A): 21

SMJ60R099BFS

SineSemi

Automotive (Y/N): N
Package: TO220-3L
Configuration: N
Tj (°C): 150
VDS_Max (V): 600
ID_Max (A): 32

SMJ60R099BFT

SineSemi

Automotive (Y/N): N
Package: TO263-3L
Configuration: N
Tj (°C): 150
VDS_Max (V): 600
ID_Max (A): 32

SMJ60R099BFY

SineSemi

Automotive (Y/N): N
Package: TO247-3L
Configuration: N
Tj (°C): 150
VDS_Max (V): 600
ID_Max (A): 34

SMJ60R120AFS

SineSemi

Automotive (Y/N): -
Package: -
Configuration: -
Tj (°C): 150
VDS_Max (V): 600
ID_Max (A): 28

SMJ60R130BFF

SineSemi

Automotive (Y/N): N
Package: TO220F-3L
Configuration: N
Tj (°C): 150
VDS_Max (V): 600
ID_Max (A): 21

SMJ60R130BFS

SineSemi

Automotive (Y/N): N
Package: TO220-3L
Configuration: N
Tj (°C): 150
VDS_Max (V): 600
ID_Max (A): 23

SMJ60R130BFT

SineSemi

Automotive (Y/N): N
Package: TO263-3L
Configuration: N
Tj (°C): 150
VDS_Max (V): 600
ID_Max (A): 23

SMJ60R165AFF

SineSemi

Automotive (Y/N): -
Package: -
Configuration: -
Tj (°C): 150
VDS_Max (V): 600
ID_Max (A): 21

SMJ60R190AFU

SineSemi

Automotive (Y/N): -
Package: -
Configuration: -
Tj (°C): 150
VDS_Max (V): 600
ID_Max (A): 20

SMJ60R190ANU

SineSemi

Automotive (Y/N): -
Package: -
Configuration: -
Tj (°C): 150
VDS_Max (V): 600
ID_Max (A): 20

SMJ65R019CFY

SineSemi

Automotive (Y/N): N
Package: TO247-3L
Configuration: N
Tj (°C): 150
VDS_Max (V): 650
ID_Max (A): 109

SMJ65R022AFY

SineSemi

Automotive (Y/N): -
Package: -
Configuration: -
Tj (°C): 150
VDS_Max (V): 650
ID_Max (A): 105

SMJ65R022CFY

SineSemi

Automotive (Y/N): N
Package: TO247-3L
Configuration: N
Tj (°C): 150
VDS_Max (V): 650
ID_Max (A): 95

SMJ65R036CFYS

SineSemi

Automotive (Y/N): N
Package: TO247-3L
Configuration: N
Tj (°C): 150
VDS_Max (V): 650
ID_Max (A): 79

SMJ65R038AFY

SineSemi

Automotive (Y/N): -
Package: -
Configuration: -
Tj (°C): 150
VDS_Max (V): 650
ID_Max (A): 80

SMJ65R040AFY

SineSemi

Automotive (Y/N): -
Package: -
Configuration: -
Tj (°C): 150
VDS_Max (V): 650
ID_Max (A): 80

SMJ65R040CFYS

SineSemi

Automotive (Y/N): N
Package: TO247-3L
Configuration: N
Tj (°C): 150
VDS_Max (V): 650
ID_Max (A): 72

SMJ65R060CFYS

SineSemi

Automotive (Y/N): N
Package: TO247-3L
Configuration: N
Tj (°C): 150
VDS_Max (V): 650
ID_Max (A): 50

SMJ65R076AFT

SineSemi

Automotive (Y/N): -
Package: -
Configuration: -
Tj (°C): 150
VDS_Max (V): 600
ID_Max (A): 52

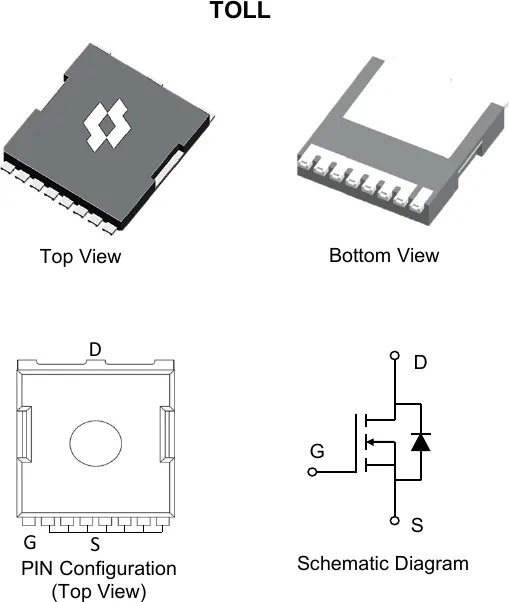

SMJ65R080CFTLS

SineSemi

Automotive (Y/N): N
Package: TOLL
Configuration: N
Tj (°C): 150
VDS_Max (V): 650
ID_Max (A): 44

SMJ65R080CFYS

SineSemi

Automotive (Y/N): N
Package: TO247-3L
Configuration: N
Tj (°C): 150
VDS_Max (V): 650
ID_Max (A): 44

SMJ65R099CFFS

SineSemi

Automotive (Y/N): N
Package: TO220F-3L
Configuration: N
Tj (°C): 150
VDS_Max (V): 650
ID_Max (A): 31

SMJ65R099CFGS

SineSemi

Automotive (Y/N): N
Package: DFN8*8-4L
Configuration: N
Tj (°C): 150
VDS_Max (V): 650
ID_Max (A): 31

SMJ65R099CFSS

SineSemi

Automotive (Y/N): N
Package: TO220-3L
Configuration: N
Tj (°C): 150
VDS_Max (V): 650
ID_Max (A): 31

SMJ65R099CFTS

SineSemi

Automotive (Y/N): N
Package: TO263-3L
Configuration: N
Tj (°C): 150
VDS_Max (V): 650
ID_Max (A): 31

SMJ65R099CFYS

SineSemi

Automotive (Y/N): N
Package: TO247-3L
Configuration: N
Tj (°C): 150
VDS_Max (V): 650
ID_Max (A): 26

SMJ65R100AFF

SineSemi

Automotive (Y/N): -
Package: -
Configuration: -
Tj (°C): 150
VDS_Max (V): 600
ID_Max (A): 35

SMJ65R100AFT

SineSemi

Automotive (Y/N): -
Package: -
Configuration: -
Tj (°C): 150
VDS_Max (V): 600
ID_Max (A): 35

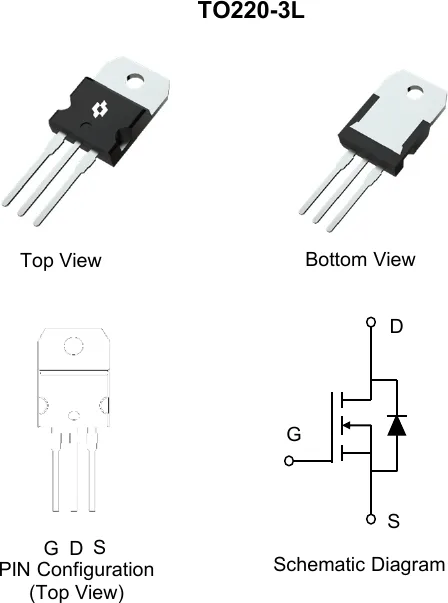

SMJ65R125CFSS

SineSemi

Automotive (Y/N): N
Package: TO220-3L
Configuration: N
Tj (°C): 150
VDS_Max (V): 650
ID_Max (A): 31

SMJ65R140AFF

SineSemi

Automotive (Y/N): -
Package: -
Configuration: -
Tj (°C): 150
VDS_Max (V): 600
ID_Max (A): 25

SMJ65R140AFT

SineSemi

Automotive (Y/N): -
Package: -
Configuration: -
Tj (°C): 150
VDS_Max (V): 600
ID_Max (A): 25

SMJ65R140BFF

SineSemi

Automotive (Y/N): N
Package: TO220F-3L
Configuration: N
Tj (°C): 150
VDS_Max (V): 650
ID_Max (A): 21

SMJ65R140BFS

SineSemi

Automotive (Y/N): N
Package: TO220-3L
Configuration: N
Tj (°C): 150
VDS_Max (V): 650
ID_Max (A): 21

SMJ65R140BFT

SineSemi

Automotive (Y/N): N
Package: TO263-3L
Configuration: N
Tj (°C): 150
VDS_Max (V): 650
ID_Max (A): 21

SMJ65R140BFU

SineSemi

Automotive (Y/N): N
Package: TO252-3L
Configuration: N
Tj (°C): 150
VDS_Max (V): 650
ID_Max (A): 20

SMJ65R140CFF

SineSemi

Automotive (Y/N): N
Package: TO220F-3L
Configuration: N
Tj (°C): 150
VDS_Max (V): 650
ID_Max (A): 24

SMJ65R140CFS

SineSemi

Automotive (Y/N): N
Package: TO220-3L
Configuration: N
Tj (°C): 150
VDS_Max (V): 650
ID_Max (A): 24

SMJ65R140CFT

SineSemi

Automotive (Y/N): N
Package: TO263-3L
Configuration: N
Tj (°C): 150
VDS_Max (V): 650
ID_Max (A): 24

SMJ65R160CNF

SineSemi

Automotive (Y/N): N
Package: TO220F-3L
Configuration: N
Tj (°C): 150
VDS_Max (V): 650
ID_Max (A): 20

SMJ65R160CNG

SineSemi

Automotive (Y/N): N
Package: DFN8080-4L
Configuration: N
Tj (°C): 150
VDS_Max (V): 650
ID_Max (A): 17

SMJ65R160CNS

SineSemi

Automotive (Y/N): N
Package: TO220-3L
Configuration: N
Tj (°C): 150
VDS_Max (V): 650
ID_Max (A): 19

SMJ65R160CNT

SineSemi

Automotive (Y/N): N
Package: TO263-3L
Configuration: N
Tj (°C): 150
VDS_Max (V): 650
ID_Max (A): 19

SMJ65R190AFF

SineSemi

Automotive (Y/N): -
Package: -
Configuration: -
Tj (°C): 150
VDS_Max (V): 600
ID_Max (A): 20

SMJ65R190AFT

SineSemi

Automotive (Y/N): -
Package: -
Configuration: -
Tj (°C): 150
VDS_Max (V): 600
ID_Max (A): 20

SMJ65R190ANF

SineSemi

Automotive (Y/N): -
Package: -
Configuration: -
Tj (°C): 150
VDS_Max (V): 650
ID_Max (A): 20

SMJ65R190ANT

SineSemi

Automotive (Y/N): -
Package: -
Configuration: -
Tj (°C): 150
VDS_Max (V): 650
ID_Max (A): 20

	Brand
SMJ30R019CFTL	SineSemi	N	TOLL	N	150	300	72	4	16	19	±30	730	4900	3300	11	100
SMJ30R019CFY	SineSemi	N	TO247-3L	N	150	300	72	4	16	19	±30	730	4900	3300	11	100
SMJ60R017CFY	SineSemi	N	TO247-3L	N	150	600	125	4	14.5	17	±30	1500	10900	205	6	260
SMJ60R022CFY	SineSemi	-	-	-	150	600	105	-	19.3	22	±30	3420	3290	270	6.2	163
SMJ60R024BFY	SineSemi	N	TO247-3L	N	150	600	80	4	18.5	24	±30	2880	7212	142	29	221
SMJ60R030AFY	SineSemi	-	-	-	150	600	100	3.8	26	30	±30	2025	7950	300	8.5	145
SMJ60R035BFTL	SineSemi	N	TOLL	N	150	600	66	3.5	29	35	±30	1620	4353	94	21	141
SMJ60R035BFY	SineSemi	N	TO247-3L	N	150	600	66	3.5	32	35	±30	1620	4353	94	21	141
SMJ60R038CFY	SineSemi	N	TO247-3L	N	150	600	70	4	33	38	±30	540	4640	135	3	110
SMJ60R040CFY	SineSemi	-	-	-	150	600	83	3.7	33.5	40	±20	1600	4001	89	26	140
SMJ60R065AFS	SineSemi	-	-	-	150	600	55	3.9	58	65	±30	1000	2990	125	5	73
SMJ60R065AFTL	SineSemi	-	-	-	150	600	55	3.8	58	65	±30	1000	3990	120	5	73
SMJ60R076AFT	SineSemi	-	-	-	150	600	52	-	70	76	±30	625	3440	162	7	80
SMJ60R099BFF	SineSemi	N	TO220F-3L	N	150	600	21	3.5	78	99	±30	562	1684	43	13.3	55
SMJ60R099BFS	SineSemi	N	TO220-3L	N	150	600	32	3.5	78	99	±30	562	1684	43	13.3	55
SMJ60R099BFT	SineSemi	N	TO263-3L	N	150	600	32	3.5	78	99	±30	562	1684	43	13.3	55
SMJ60R099BFY	SineSemi	N	TO247-3L	N	150	600	34	3.5	78	99	±30	562	1684	43	13.3	55
SMJ60R120AFS	SineSemi	-	-	-	150	600	28	3.8	100	120	±30	100	2200	89	4	53
SMJ60R130BFF	SineSemi	N	TO220F-3L	N	150	600	21	4	114	137	±30	500	1250	52	5.2	42
SMJ60R130BFS	SineSemi	N	TO220-3L	N	150	600	23	4	114	137	±30	500	1250	52	5.2	42
SMJ60R130BFT	SineSemi	N	TO263-3L	N	150	600	23	4	114	137	±30	500	1250	52	5.2	42
SMJ60R165AFF	SineSemi	-	-	-	150	600	21	-	150	165	±30	220	1670	68	4.3	40
SMJ60R190AFU	SineSemi	-	-	-	150	600	20	-	170	190	±30	250	1690	78	3.3	40
SMJ60R190ANU	SineSemi	-	-	-	150	600	20	-	168	190	±30	250	1690	78	3.3	40
SMJ65R019CFY	SineSemi	N	TO247-3L	N	150	650	109	4	16	19	±30	1500	11060	190	9	240
SMJ65R022AFY	SineSemi	-	-	-	150	650	105	-	18.5	22	±30	3420	11200	500	6	142
SMJ65R022CFY	SineSemi	N	TO247-3L	N	150	650	95	4	19	22	±30	1200	8900	155	10	200
SMJ65R036CFYS	SineSemi	N	TO247-3L	N	150	650	79	3.9	30	36	±30	1200	5550	310	15	207
SMJ65R038AFY	SineSemi	-	-	-	150	650	80	3.8	31	38	±30	2025	8100	352	10	133
SMJ65R040AFY	SineSemi	-	-	-	150	650	80	3.8	33	40	±30	2025	8100	352	10	133
SMJ65R040CFYS	SineSemi	N	TO247-3L	N	150	650	72	3.9	36	40	±30	1000	4900	265	1.6	158
SMJ65R060CFYS	SineSemi	N	TO247-3L	N	150	650	50	3.9	45	60	±30	810	3395	217	2.5	128
SMJ65R076AFT	SineSemi	-	-	-	150	600	52	-	69	76	±30	308	3433	153	8	93
SMJ65R080CFTLS	SineSemi	N	TOLL	N	150	650	44	4	68	80	±30	540	3193	145	1.4	75
SMJ65R080CFYS	SineSemi	N	TO247-3L	N	150	650	44	4.3	68	75	±30	540	3193	145	1.4	75
SMJ65R099CFFS	SineSemi	N	TO220F-3L	N	150	650	31	3.9	90	99	±30	480	1900	117	2.2	70
SMJ65R099CFGS	SineSemi	N	DFN8*8-4L	N	150	650	31	3.9	90	99	±30	480	1900	117	2.2	70
SMJ65R099CFSS	SineSemi	N	TO220-3L	N	150	650	31	3.9	87	99	±30	480	1900	117	2.2	70
SMJ65R099CFTS	SineSemi	N	TO263-3L	N	150	650	31	3.9	87	99	±30	480	1900	117	2.2	70
SMJ65R099CFYS	SineSemi	N	TO247-3L	N	150	650	26	3.9	90	99	±30	480	1900	117	2.2	70
SMJ65R100AFF	SineSemi	-	-	-	150	600	35	4	82	100	±30	750	2990	141	5.8	88
SMJ65R100AFT	SineSemi	-	-	-	150	600	35	4	82	100	±30	750	2990	141	5.8	88
SMJ65R125CFSS	SineSemi	N	TO220-3L	N	150	650	31	3.9	103	125	±30	480	1580	88	1.2	52
SMJ65R140AFF	SineSemi	-	-	-	150	600	25	3.8	120	140	±30	400	2040	82	3.8	45
SMJ65R140AFT	SineSemi	-	-	-	150	600	25	3.8	120	140	±30	400	2040	82	3.8	45
SMJ65R140BFF	SineSemi	N	TO220F-3L	N	150	650	21	4	132	148	±30	320	1224	45	5.3	42
SMJ65R140BFS	SineSemi	N	TO220-3L	N	150	650	21	4	132	148	±30	320	1224	45	5.3	42
SMJ65R140BFT	SineSemi	N	TO263-3L	N	150	650	21	4	132	148	±30	320	1224	45	5.3	42
SMJ65R140BFU	SineSemi	N	TO252-3L	N	150	650	20	4	132	148	±30	320	1224	45	5.3	42
SMJ65R140CFF	SineSemi	N	TO220F-3L	N	150	650	24	3.9	110	140	±30	300	1595	90	1.6	46
SMJ65R140CFS	SineSemi	N	TO220-3L	N	150	650	24	3.8	112	140	±30	300	1595	90	1.6	46
SMJ65R140CFT	SineSemi	N	TO263-3L	N	150	650	24	3.8	112	140	±30	300	1595	90	1.6	46
SMJ65R160CNF	SineSemi	N	TO220F-3L	N	150	650	20	3.5	145	160	±30	210	1114	68	0.85	36
SMJ65R160CNG	SineSemi	N	DFN8080-4L	N	150	650	17	3.5	145	160	±30	210	1114	68	0.85	36
SMJ65R160CNS	SineSemi	N	TO220-3L	N	150	650	19	3.5	145	160	±30	210	1114	68	0.85	36
SMJ65R160CNT	SineSemi	N	TO263-3L	N	150	650	19	3.5	145	160	±30	210	1114	68	0.85	36
SMJ65R190AFF	SineSemi	-	-	-	150	600	20	-	170	190	±30	306	1690	78	3.3	40
SMJ65R190AFT	SineSemi	-	-	-	150	600	20	-	170	190	±30	306	1690	78	3.3	40
SMJ65R190ANF	SineSemi	-	-	-	150	650	20	-	185	190	±30	308	1690	78	3.3	40
SMJ65R190ANT	SineSemi	-	-	-	150	650	20	-	185	190	±30	308	1690	78	3.3	40
