Parametric Search

SiC MOSFETs

Filter, sort and export; for parts not yet listed, send an inquiry to confirm availability

SiC MOSFETs are power switches built on silicon-carbide material. Compared with silicon super-junction MOSFETs, they offer lower conduction loss and faster switching, suited to high-efficiency, high-switching-frequency power supplies and new-energy conversion.

Rdson rises far less with temperature than silicon, an advantage that grows at higher operating temperatures
High dv/dt switching demands more of driver noise immunity and PCB layout
Small body-diode reverse-recovery charge (Qrr) suits high-frequency hard-switching topologies
Weigh the cost premium against system-level efficiency gains versus silicon alternatives

Learn more: SiC MOSFETs Selection Guide →

SCMP120R16AY4N

SineSemi

Automotive (Y/N): N
Package: TO247-4L Notch
Configuration: N
Tj (°C): 175
VDS_Max (V): 1200
ID_Max (A): 129

SCMP120R21AY4

SineSemi

Automotive (Y/N): N
Package: TO247-4L
Configuration: N
Tj (°C): 175
VDS_Max (V): 1200
ID_Max (A): 97

SCMP120R31AY4

SineSemi

Automotive (Y/N): N
Package: TO247-4L
Configuration: N
Tj (°C): 175
VDS_Max (V): 1200
ID_Max (A): 74

SCMP120R40AY4N

SineSemi

Automotive (Y/N): N
Package: TO247-4L Notch
Configuration: N
Tj (°C): 175
VDS_Max (V): 1200
ID_Max (A): 62

SCMP120R60AY4N

SineSemi

Automotive (Y/N): N
Package: TO247-4L Notch
Configuration: N
Tj (°C): 175
VDS_Max (V): 1200
ID_Max (A): 48

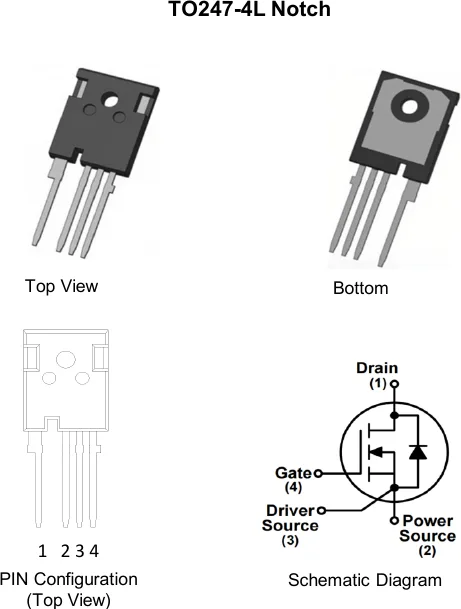

SCMP120R80AY4N

SineSemi

Automotive (Y/N): N
Package: TO247-4L Notch
Configuration: N
Tj (°C): 175
VDS_Max (V): 1200
ID_Max (A): 32

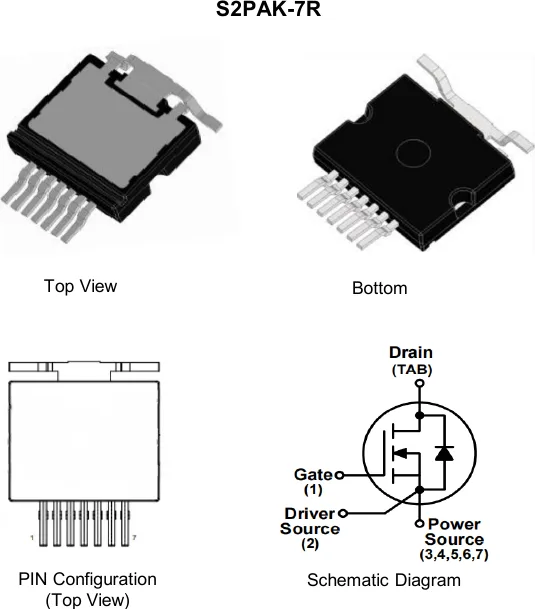

SCMP65R15AT7LB

SineSemi

Automotive (Y/N): N
Package: S2PAK-7R
Configuration: N
Tj (°C): 175
VDS_Max (V): 650
ID_Max (A): 129

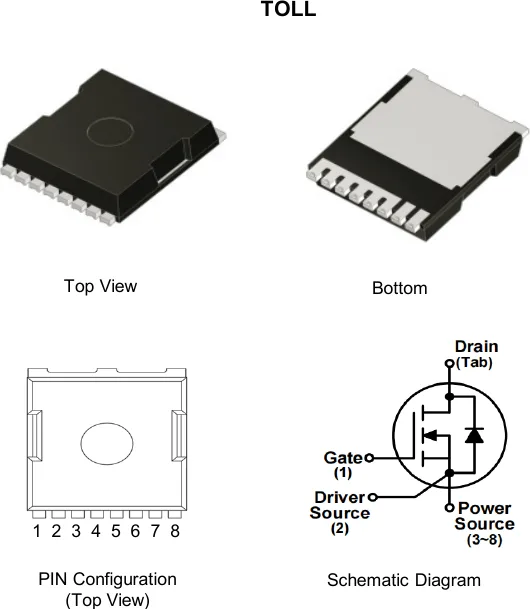

SCMP65R15ATLB

SineSemi

Automotive (Y/N): N
Package: TOLL
Configuration: N
Tj (°C): 175
VDS_Max (V): 650
ID_Max (A): 134

SCMP65R190BF

SineSemi

Automotive (Y/N): N
Package: TO220F-3L
Configuration: N
Tj (°C): 175
VDS_Max (V): 650
ID_Max (A): 9

SCMP65R190BP

SineSemi

Automotive (Y/N): N
Package: PDFN5060-8L
Configuration: N
Tj (°C): 175
VDS_Max (V): 650
ID_Max (A): 10

SCMP65R190BU

SineSemi

Automotive (Y/N): N
Package: TO252-3L
Configuration: N
Tj (°C): 175
VDS_Max (V): 650
ID_Max (A): 12.5

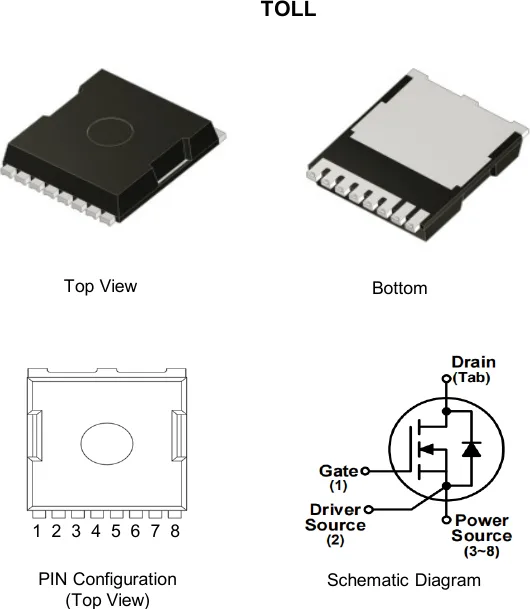

SCMP65R27ATL

SineSemi

Automotive (Y/N): N
Package: TOLL
Configuration: N
Tj (°C): 175
VDS_Max (V): 650
ID_Max (A): 84

SCMP65R27AY4

SineSemi

Automotive (Y/N): N
Package: TO247-4L
Configuration: N
Tj (°C): 175
VDS_Max (V): 650
ID_Max (A): 75

SCMP65R390BF

SineSemi

Automotive (Y/N): N
Package: TO220F-3L
Configuration: N
Tj (°C): 175
VDS_Max (V): 650
ID_Max (A): 6

SCMP65R390BP

SineSemi

Automotive (Y/N): N
Package: PDFN5060-8L
Configuration: N
Tj (°C): 175
VDS_Max (V): 650
ID_Max (A): 6.5

SCMP65R390BU

SineSemi

Automotive (Y/N): N
Package: TO252-3L
Configuration: N
Tj (°C): 175
VDS_Max (V): 650
ID_Max (A): 7.5

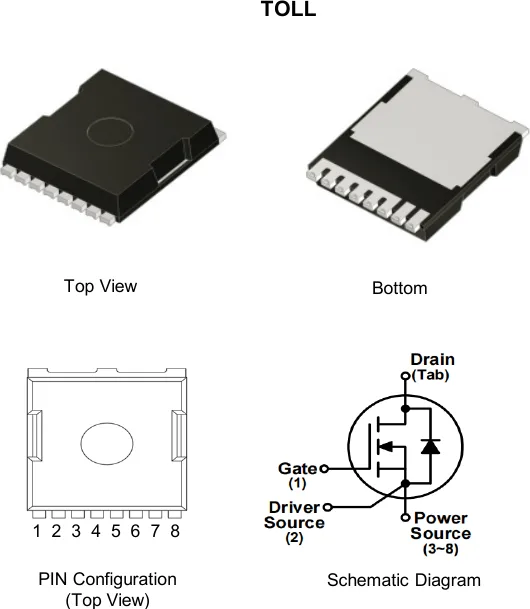

SCMP65R45ATL

SineSemi

Automotive (Y/N): N
Package: TOLL
Configuration: N
Tj (°C): 175
VDS_Max (V): 650
ID_Max (A): 50

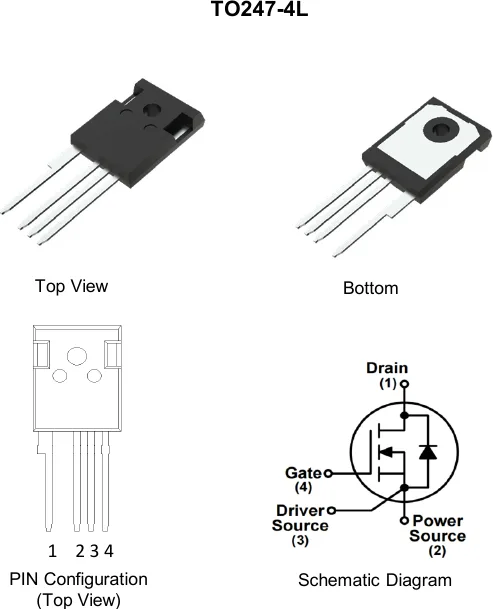

SCMP65R45AY4

SineSemi

Automotive (Y/N): N
Package: TO247-4L
Configuration: N
Tj (°C): 175
VDS_Max (V): 650
ID_Max (A): 44

SCMP80R130BF

SineSemi

Automotive (Y/N): N
Package: TO220F-3L
Configuration: N
Tj (°C): 175
VDS_Max (V): 800
ID_Max (A): 25

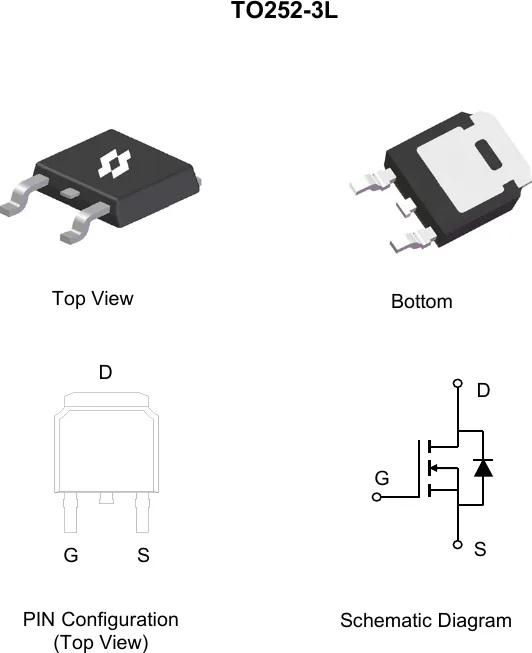

SCMP80R130BU

SineSemi

Automotive (Y/N): N
Package: TO252-3L
Configuration: N
Tj (°C): 175
VDS_Max (V): 800
ID_Max (A): 25

SCMP80R390BF

SineSemi

Automotive (Y/N): N
Package: TO220F-3L
Configuration: N
Tj (°C): 175
VDS_Max (V): 800
ID_Max (A): 9

SCMP80R390BU

SineSemi

Automotive (Y/N): N
Package: TO252-3L
Configuration: N
Tj (°C): 175
VDS_Max (V): 800
ID_Max (A): 9

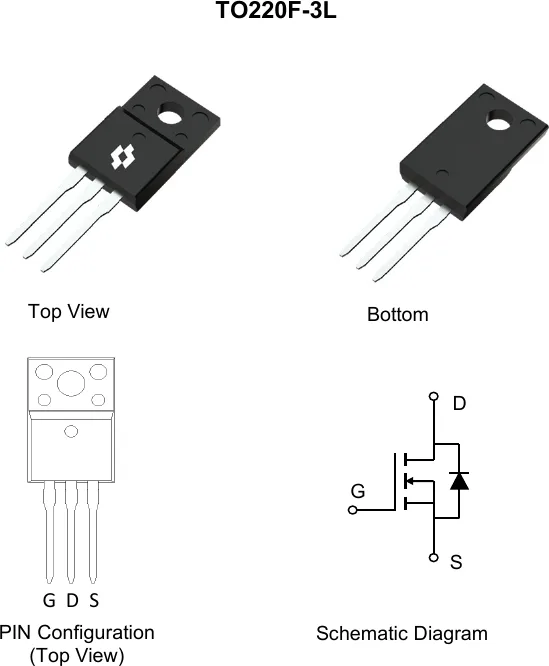

SCMP80R95BF

SineSemi

Automotive (Y/N): N
Package: TO220F-3L
Configuration: N
Tj (°C): 175
VDS_Max (V): 800
ID_Max (A): 29

	Brand
SCMP120R16AY4N	SineSemi	N	TO247-4L Notch	N	175	1200	129	-10/+22	3	16	22	26	-	4063	227	3	152	30	2250
SCMP120R21AY4	SineSemi	N	TO247-4L	N	175	1200	97	-10/+22	3	21	29.4	33.6	-	2949	170	5	111	30	2250
SCMP120R31AY4	SineSemi	N	TO247-4L	N	175	1200	74	-10/+22	3.2	31	45	50	-	2127	124	4	75	30	2250
SCMP120R40AY4N	SineSemi	N	TO247-4L Notch	N	175	1200	62	-10/+22	3	40	52	64	-	1668	105	4	62	30	2250
SCMP120R60AY4N	SineSemi	N	TO247-4L Notch	N	175	1200	48	-10/+22	3	60	84	96	-	1090	70	3	40	30	2250
SCMP120R80AY4N	SineSemi	N	TO247-4L Notch	N	175	1200	32	-10/+22	3	80	108	128	-	807	52	1	28	30	2250
SCMP65R15AT7LB	SineSemi	N	S2PAK-7R	N	175	650	129	-10/+22	2.8	15	21	20	-	3525	297	16	146	1000	400000
SCMP65R15ATLB	SineSemi	N	TOLL	N	175	650	134	-10/+22	2.8	15	21	20	-	3525	297	16	146	2000	20000
SCMP65R190BF	SineSemi	N	TO220F-3L	N	175	650	9	-10/+22	3.2	190	240	265	164	261	22	3	13.5	1000	5000
SCMP65R190BP	SineSemi	N	PDFN5060-8L	N	175	650	10	-10/+22	3.2	190	240	265	164	261	22	3	13.5	5000	50000
SCMP65R190BU	SineSemi	N	TO252-3L	N	175	650	12.5	-10/+22	3.2	190	240	265	164	261	22	3	13.5	2500	25000
SCMP65R27ATL	SineSemi	N	TOLL	N	175	650	84	-10/+22	2.8	27	38	35	-	1853	10.5	10.5	91	2000	20000
SCMP65R27AY4	SineSemi	N	TO247-4L	N	175	650	75	-10/+22	2.8	27	38	35	-	1853	207	10.5	91	30	2250
SCMP65R390BF	SineSemi	N	TO220F-3L	N	175	650	6	-10/+22	3.2	390	470	545	64	137	12	2	8.1	1000	5000
SCMP65R390BP	SineSemi	N	PDFN5060-8L	N	175	650	6.5	-10/+22	3.2	390	470	545	64	137	12	2	8.1	5000	50000
SCMP65R390BU	SineSemi	N	TO252-3L	N	175	650	7.5	-10/+22	3.2	390	470	545	64	137	12	2	8.1	2500	25000
SCMP65R45ATL	SineSemi	N	TOLL	N	175	650	50	-10/+22	2.8	45	63	59	-	1048	131	9.1	56	2000	20000
SCMP65R45AY4	SineSemi	N	TO247-4L	N	175	650	44	-10/+22	2.8	45	63	59	-	1048	131	9.1	56	30	2250
SCMP80R130BF	SineSemi	N	TO220F-3L	N	175	800	25	-10/+22	3.2	125	150	180	-	706	43	3	29	1000	5000
SCMP80R130BU	SineSemi	N	TO252-3L	N	175	800	25	-10/+22	3.2	125	150	180	-	706	43	3	29	2500	25000
SCMP80R390BF	SineSemi	N	TO220F-3L	N	175	800	9	-10/+22	3.4	390	450	520	-	208	18	1.8	10.6	1000	5000
SCMP80R390BU	SineSemi	N	TO252-3L	N	175	800	9	-10/+22	3.4	390	450	520	-	208	18	1.8	10.6	2500	25000
SCMP80R95BF	SineSemi	N	TO220F-3L	N	175	800	29	-10/+22	3.2	95	115	125	-	736	48	3	32	1000	5000
