SMT13T02AHTL

SineSemi 中晶新源Core Authorized Distributor

LV & MV MOSFETsTOLL
Download Datasheet

Specifications

Package
TOLL
Configuration
N
VDS_Max
135 V
ID
336 A
RDS(ON)_Max @VGS=10V
2.1 mΩ
Automotive (Y/N)
N
VGS(th)_Typ
3 V
RDS(ON)_Typ @VGS=10V
1.7 mΩ
VGS_Max
±20 V
Tj
175 °C
EAS_Max
2016 mJ
Ciss_Typ
8515 pF
Coss_Typ
3474 pF
Crss_Typ
50 pF
Qg_Typ
114 nC
ESD
No
MPQ
2000 pcs
MOQ
20000 pcs
App: Motor Drive
Y
App: HF Power
Y
App: Battery Protection
Y
App: General Switch
Y

Not sure how to choose? Read the LV & MV MOSFETs Selection Guide →

Package & Schematic

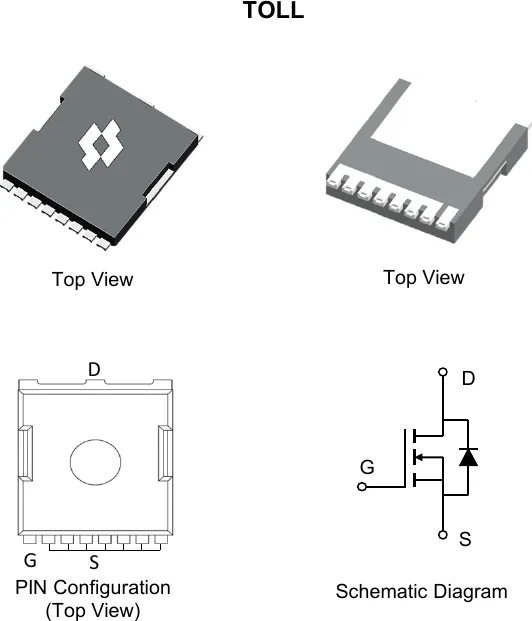

SMT13T02AHTL package outline, pin configuration and schematic
Package outline · Pin configuration · Schematic (from SineSemi official datasheet)

Online Datasheet

Compiled from the manufacturer's datasheet; the official document prevails.

SMT13T02AHTL

135V N-Channel Power MOSFET

Product Summary
VDS RDS(ON), max ID, max
135 V 2.1 mΩ @ VGS = 10V 336 A

TOLL

Maximum Ratings (@ TC = 25°C, unless otherwise specified.)
Parameter Symbol Value Unit
Drain - Source Voltage VDS 135 V
Gate - Source Voltage VGS ±20 V
Continuous Drain Current (VGS = 10V) (1) ID TC = 25°C: 336 A
TC = 100°C: 237 A
Pulsed Drain Current (2) IDM 1342 A
Single Pulse Avalanche Energy (3) EAS 2016 mJ
Single Pulse Avalanche Current (L = 0.1mH) IAS 76 A
Power Dissipation PD TC = 25°C: 517 W
TC = 100°C: 259 W
Junction & Storage Temperature Range TJ, TSTG -55~+175 °C
Thermal Characteristics
Parameter Symbol Typ Max Unit
Thermal Resistance, Junction-to-Ambient (4) R_θJA 20 25 °C/W
Thermal Resistance, Junction-to-Case (5) R_θJC 0.22 0.29 °C/W

Electrical Characteristics (@ TJ = 25°C, unless otherwise specified.)

Off Characteristics
Parameter Symbol Test Condition Min Typ Max Unit
Drain-Source Breakdown Voltage V(BR)DSS VGS = 0V, ID = 250µA 135 — — V
Zero Gate Voltage Drain Current IDSS VDS = 135V, VGS = 0V — — 1.0 µA
TJ = 125°C — — 100 µA
Gate-Source Leakage Current IGSS VGS = ±20V, VDS = 0V — — ±100 nA
On Characteristics
Parameter Symbol Test Condition Min Typ Max Unit
Gate Threshold Voltage VGS(th) VGS = VDS, ID = 250µA 2.0 3.0 4.0 V
Static Drain-Source On-Resistance RDS(on) VGS = 10V, ID = 80A — 1.7 2.1 mΩ
Forward Transconductance gfs VDS = 5.0V, ID = 20A — 74 — S
Diodes Forward Voltage VSD IS = 2.0A, VGS = 0V — 0.7 1.2 V
Dynamic Characteristics
Parameter Symbol Test Condition Min Typ Max Unit
Input Capacitance Ciss VDS = 65V, VGS = 0V, f = 1MHz — 8515 — pF
Output Capacitance Coss — 3474 — pF
Reverse Transfer Capacitance Crss — 50 — pF
Gate Resistance Rg VGS = 0V, VDS = 0V, f = 1MHz — 1.2 — Ω
Switching Characteristics
Parameter Symbol Test Condition Min Typ Max Unit
Turn-On Delay Time td(on) VGS = 10V, VDS = 65V — 18 — ns
Rise Time tr ID = 80A, RGEN = 3.0 — 25 — ns
Turn-Off Delay Time td(off) — 59 — ns
Fall Time tf — 30 — ns
Gate Charge Characteristics
Parameter Symbol Test Condition Min Typ Max Unit
Total Gate Charge (VGS = 10V) Qg VDS = 50V, ID = 20A — 114 — nC
Gate-Source Charge Qgs — 38 — nC
Gate-Drain Charge Qgd — 23 — nC
Gate Plateau Voltage Vplateau — 4.9 — V
Drain-Source Diode Characteristics
Parameter Symbol Test Condition Min Typ Max Unit
Body Diode Reverse Recovery Time trr IS = 80A, di/dt = 100 A/µs — 112 — ns
Body Diode Reverse Recovery Charge Qrr TJ = 25°C — 283 — nC
Diode Forward Current IS TC = 25°C — — 336 A

Notes:

  1. This current is chip limited, which is calculated based on Rthjc.
  2. This current is calculated on single pulse with 10us Single Pulse.
  3. Defined by design, not subject to production test, EAS condition: TJ=25°C, VDD=65V, VGS=10V, L=1.0mH.
  4. Device mounted on FR-4 substrate PC board with 2oz copper in 1inch square cooling area.
  5. Thermal resistance from junction to the exposed pad.
  6. Short duration pulse test used to minimize self-heating effect.
  7. Defined by design, not subject to production.
