Product Detail
SMT15T60AHX
SineSemi 中晶新源Core Authorized Distributor
Specifications
- Package
- SOP-8L
- Configuration
- N
- VDS_Max
- 150 V
- ID
- 4.5 A
- RDS(ON)_Max @VGS=10V
- 60 mΩ
- Automotive (Y/N)
- N
- VGS(th)_Typ
- 3.4 V
- RDS(ON)_Typ @VGS=10V
- 53 mΩ
- VGS_Max
- ±20 V
- Tj
- 150 °C
- EAS_Max
- 78 mJ
- Ciss_Typ
- 732 pF
- Coss_Typ
- 65 pF
- Crss_Typ
- 7.2 pF
- Qg_Typ
- 6.9 nC
- ESD
- No
- MPQ
- 4000 pcs
- MOQ
- 40000 pcs
- App: General Switch
- Y
Not sure how to choose? Read the LV & MV MOSFETs Selection Guide →

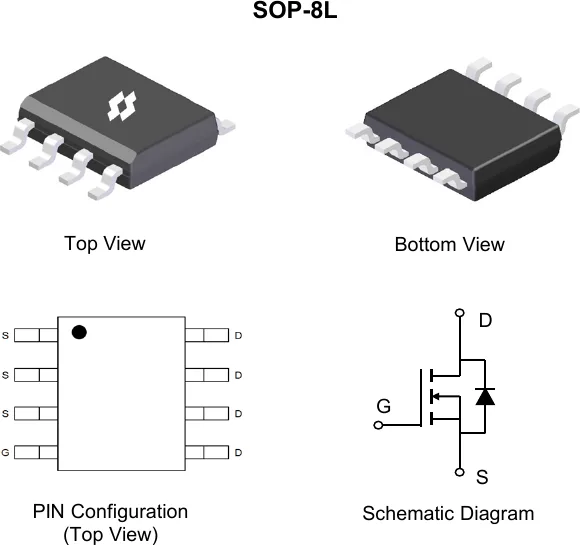

Package & Schematic
