Product Detail
SMT10T05SHT
SineSemi 中晶新源Core Authorized Distributor
Specifications
- Package
- TO263-3L
- Configuration
- N
- VDS_Max
- 100 V
- ID
- 137 A
- RDS(ON)_Max @VGS=10V
- 5.2 mΩ
- Automotive (Y/N)
- N
- VGS(th)_Typ
- 3 V
- RDS(ON)_Typ @VGS=10V
- 4.5 mΩ
- VGS_Max
- ±20 V
- Tj
- 150 °C
- EAS_Max
- 225 mJ
- Ciss_Typ
- 5273 pF
- Coss_Typ
- 1186 pF
- Crss_Typ
- 19 pF
- Qg_Typ
- 74 nC
- ESD
- No
- MPQ
- 1000 pcs
- MOQ
- 5000 pcs
- App: Motor Drive
- Y
- App: HF Power
- Y
- App: General Switch
- Y
Not sure how to choose? Read the LV & MV MOSFETs Selection Guide →

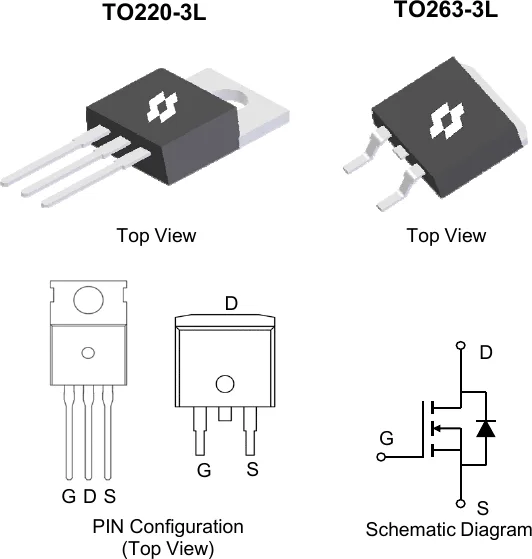

Package & Schematic
