SMT10T20ALPDQ

中晶新源 SineSemi核心代理商

中低压 MOSFET车规PDFN5060-8L-D
规格书下载

参数规格

封装
PDFN5060-8L-D
结构
N+N
漏源电压 VDS
100 V
漏极电流 ID
32 A
导通电阻 RDS(ON)@10V 最大
20 mΩ
车规 (Y/N)
Y
阈值电压 VGS(th) 典型
1.8 V
导通电阻 RDS(ON)@10V 典型
16.5 mΩ
导通电阻 RDS(ON)@4.5V 典型
21 mΩ
导通电阻 RDS(ON)@4.5V 最大
27 mΩ
栅源电压 VGS 最大
±20 V
结温 Tj
175 °C
雪崩能量 EAS 最大
40 mJ
输入电容 Ciss 典型
554 pF
输出电容 Coss 典型
258 pF
反向传输电容 Crss 典型
8.4 pF
总栅极电荷 Qg 典型
10.6 nC
ESD
No
最小包装量
5000 pcs
最小订购量
50000 pcs
应用推荐-高频电源
Y
应用推荐-锂电池保护
Y
应用推荐-通用开关
Y

封装与电路符号

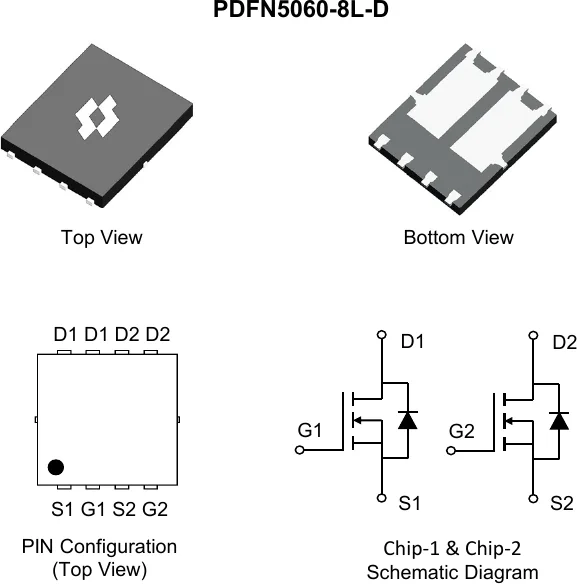

SMT10T20ALPDQ 封装外形、引脚配置与电路符号图
封装外形 · 引脚配置 · 电路符号(源自中晶新源官方 datasheet)

在线规格书

以下内容整理自原厂规格书,实际参数以原厂正式文件为准。

SMT10T20ALPDQ

N-Channel Power MOSFET

Product Summary
VDS RDS(ON), max ID, max
100 V 20 mΩ @ VGS = 10V 32 A
27 mΩ @ VGS = 4.5V

PDFN5060-8L

Maximum Ratings (@ TC = 25°C, unless otherwise specified.)
Parameter Symbol Value Unit
Drain - Source Voltage VDS 100 V
Gate - Source Voltage VGS ±20 V
Continuous Drain Current (VGS = 10V) (1) ID TC = 25°C: 32 A
TC = 100°C: 23 A
Pulsed Drain Current (2) IDM 125 A
Single Pulse Avalanche Energy (3) EAS 40 mJ
Single Pulse Avalanche Current (L = 0.1mH) IAS 16 A
Power Dissipation PD TC = 25°C: 43 W
TC = 100°C: 21 W
Junction & Storage Temperature Range TJ, TSTG -55~+175 °C
Thermal Characteristics
Parameter Symbol Typ Max Unit
Thermal Resistance, Junction-to-Ambient (4) R_θJA 45 56 °C/W
Thermal Resistance, Junction-to-Case (5) R_θJC 2.7 3.5 °C/W

Electrical Characteristics (@ TJ = 25°C, unless otherwise specified.)

Off Characteristics
Parameter Symbol Test Condition Min Typ Max Unit
Drain-Source Breakdown Voltage V(BR)DSS VGS = 0V, ID = 250µA 100 V
Zero Gate Voltage Drain Current IDSS VDS = 100V, VGS = 0V 1.0 µA
TJ = 125°C 100 µA
Gate-Source Leakage Current IGSS VGS = ±20V, VDS = 0V ±100 nA
On Characteristics
Parameter Symbol Test Condition Min Typ Max Unit
Gate Threshold Voltage VGS(th) VGS = VDS, ID = 250µA 1.2 1.8 2.5 V
Static Drain-Source On-Resistance RDS(on) VGS = 10V, ID = 20A 16.5 20
VGS = 4.5V, ID = 15A 21 27
Forward Transconductance gfs VDS = 5.0V, ID = 20A 20 S
Diodes Forward Voltage VSD IS = 2.0A, VGS = 0V 0.7 1.2 V
Dynamic Characteristics
Parameter Symbol Test Condition Min Typ Max Unit
Input Capacitance Ciss VDS = 50V, VGS = 0V, f = 1MHz 554 pF
Output Capacitance Coss 258 pF
Reverse Transfer Capacitance Crss 8.4 pF
Gate Resistance Rg VGS = 0V, VDS = 0V, f = 1MHz 1.0 Ω
Switching Characteristics
Parameter Symbol Test Condition Min Typ Max Unit
Turn-On Delay Time td(on) VGS = 10V, VDS = 50V 3.2 ns
Rise Time tr ID = 20A, RGEN = 3.0 2.7 ns
Turn-Off Delay Time td(off) 10.5 ns
Fall Time tf 4.0 ns
Gate Charge Characteristics
Parameter Symbol Test Condition Min Typ Max Unit
Total Gate Charge (VGS = 10V) Qg VDS = 50V, ID = 20A 10.6 nC
Total Gate Charge (VGS = 4.5V) Qg 5.5 nC
Gate-Source Charge Qgs 1.8 nC
Gate-Drain Charge Qgd 2.5 nC
Gate Plateau Voltage Vplateau 3.2 V
Drain-Source Diode Characteristics
Parameter Symbol Test Condition Min Typ Max Unit
Body Diode Reverse Recovery Time trr IS = 20A, di/dt = 100 A/µs 34 ns
Body Diode Reverse Recovery Charge Qrr TJ = 25°C 39 nC
Diode Forward Current IS TC = 25°C 32 A

Notes:

  1. This current is chip limited, whiich is calculated based on Rthjc.
  2. This current is calculated on single pulse with 10μs Pulse & Duty Cycle = 1%.
  3. Defined by design, not subject to production test, EAS condition: TJ=25°C, VDD=50V, VGS=10V, L=1.0mH.
  4. Device mounted on FR-4 substrate PC board with 2oz copper in 1inch square cooling area.
  5. Thermal resistance from junction to soldering point (on the exposed drain pad).
  6. Short duration pulse test used to minimize self-heating effect.
  7. Defined by design, not subject to production.
