SMT10T28ALRD

SineSemi 中晶新源Core Authorized Distributor

LV & MV MOSFETsPDFN3333-8L-D

Download Datasheet

Specifications

Package: PDFN3333-8L-D
Configuration: N+N
VDS_Max: 100 V
ID: 20 A
RDS(ON)_Max @VGS=10V: 29 mΩ
Automotive (Y/N): N
VGS(th)_Typ: 1.8 V
RDS(ON)_Typ @VGS=10V: 24 mΩ
RDS(ON)_Typ @VGS=4.5V: 31 mΩ
RDS(ON)_Max @VGS=4.5V: 39 mΩ
VGS_Max: ±20 V
Tj: 150 °C
EAS_Max: 48 mJ
Ciss_Typ: 433 pF
Coss_Typ: 197 pF
Crss_Typ: 8.1 pF
Qg_Typ: 7.9 nC
ESD: No
MPQ: 5000 pcs
MOQ: 50000 pcs
App: Motor Drive: Y
App: HF Power: Y
App: General Switch: Y

Not sure how to choose? Read the LV & MV MOSFETs Selection Guide →

Package & Schematic

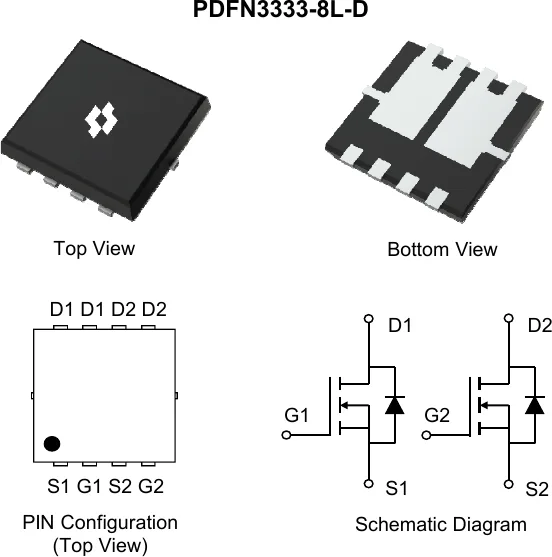

SMT10T28ALRD package outline, pin configuration and schematic — Package outline · Pin configuration · Schematic (from SineSemi official datasheet)
